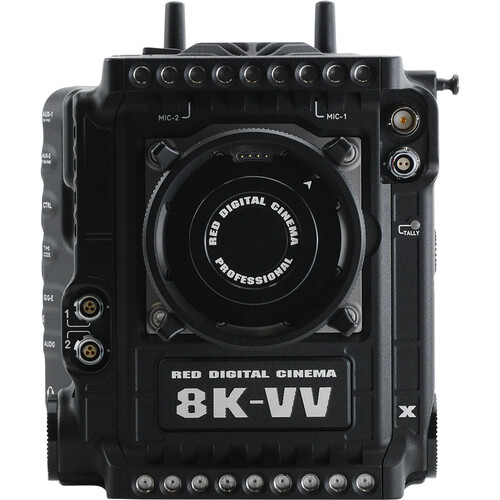

RED DIGITAL CINEMA V-RAPTOR XL [X] 8K VV Camera V-Mount

รหัสสินค้า SKU-00796

0.00 บาท

จำนวนชิ้น	ส่วนลดต่อชิ้น	ราคาสุทธิต่อชิ้น
{{(typeof focus_pdata.price_list[idx+1] == 'undefined')?('≥ '+price_row.min_quantity):((price_row.min_quantity < (focus_pdata.price_list[idx+1].min_quantity - 1))?(price_row.min_quantity+' - '+(focus_pdata.price_list[idx+1].min_quantity - 1)):price_row.min_quantity)}}	{{number_format(((focus_pdata.price_old === null)?focus_pdata.price:focus_pdata.price_old) - price_row.price,2)}} บาท	{{number_format(price_row.price,2)}} บาท



คงเหลือ	ไม่จำกัด ชิ้น
จำนวน (ชิ้น)	- +
ซื้อเลย หยิบลงตะกร้า ซื้อเลย หยิบลงตะกร้า คุณมีสินค้าชิ้นนี้ในตะกร้า 0 ชิ้น
บัตรประชาชน บุ๊คแบ๊งค์ คุ้มครองโดย LnwPay

คุยกับร้านค้า	21camerashop Add @21camerashop
{{ size_chart_name }}
หมวดหมู่	RED Camera
สภาพ	สินค้าใหม่
เพิ่มเติม
สภาพ	สินค้ามือสอง
เกรด
สถานะสินค้า
ระยะเวลาจัดเตรียมสินค้า
เข้าร่วมโปรโมชั่น


Share :

รายละเอียดสินค้า

ไฮไลท์

Full-Frame, Global Shutter CMOS

Purpose-Built Unified Body

Global Vision with Extended Highlights

Phantom Track for Ghost Frame, Remapping

Interchangeable PL Mount Included

Supports up to 8K120, 800 MB/s Video

17+ Stops of Dynamic Range

Industry-Standard Input/Output Array

Integrated Electronic ND Filters

Powerful & Versatile 12/24V Outputs

ข้อมูล

น้ำหนัก

บาร์โค้ด

ลงสินค้า

อัพเดทล่าสุด

รายละเอียดสินค้า

Lens Mount	ARRI PL
Sensor Resolution	Effective: 35.4 Megapixel (8192 x 4320)
Image Sensor	40.96 x 21.6 mm (VistaVision) CMOS
Image Stabilization	No
Internal Recording	REDCODE RAW 8192 x 4320 up to 120 fps 7168 x 3780 up to 140 fps 8192 x 3456 up to 150 fps 6144 x 3240 up to 160 fps 7168 x 3024 up to 175 fps 5120 x 2700 up to 192 fps 6144 x 2592 up to 200 fps 5120 x 2160 up to 240 fps 4096 x 2160 up to 240 fps 4096 x 1728 up to 300 fps 3072 x 1620 up to 320 fps 3072 x 1296 up to 400 fps 2048 x 1080 up to 480 fps 2048 x 864 up to 600 fps REDCODE HQ 8192 x 4320 up to 59.94 fps 7168 x 3780 6144 x 3240 up to 96 fps 4096 x 2160 up to 240 fps 2048 x 1080 up to 480 fps REDCODE LQ 8192 x 4320 up to 120 fps 7168 x 3780 6144 x 3240 up to 160 fps 4096 x 2160 up to 240 fps 2048 x 1080 up to 480 fps REDCODE MQ 8192 x 4320 up to 59.94 fps 7168 x 3780 6144 x 3240 up to 160 fps 4096 x 2160 up to 240 fps 2048 x 1080 up to 480 fps
Video Output	SDI/BNC 4096 x 2160 up to 60.00 fps 2048 x 1080p up to 60.00 fps
Media/Memory Card Slot	Single Slot: CFexpress Type B (CFast 2.0)
Video I/O	3 x BNC (12G-SDI) Output 1 x BNC (3G-SDI) Output 1 x Proprietary (Unspecified Signal) Output
Mobile App Compatible	Yes: Android & iOS App Name: RED Control, RED Control Pro
Battery Type	V-Mount

Imaging

Lens Mount	ARRI PL
Sensor Resolution	Effective: 35.4 Megapixel (8192 x 4320)
Image Sensor	40.96 x 21.6 mm (VistaVision) CMOS
Image Stabilization	No
Built-In ND Filter	Mechanical Filter Wheel with Clear, 2-Stop (1/4), 3-Stop (1/8), 4-Stop (1/16), 5-Stop (1/32), 6-Stop (1/64), 7-Stop (1/128) ND Filters
Internal Filter Holder	No
Capture Type	Video Only

Exposure Control

Shutter Type	Electronic Global Shutter
Advertised Dynamic Range	17 Stops

Video Capture

Internal Recording	REDCODE RAW 8192 x 4320 up to 120 fps 7168 x 3780 up to 140 fps 8192 x 3456 up to 150 fps 6144 x 3240 up to 160 fps 7168 x 3024 up to 175 fps 5120 x 2700 up to 192 fps 6144 x 2592 up to 200 fps 5120 x 2160 up to 240 fps 4096 x 2160 up to 240 fps 4096 x 1728 up to 300 fps 3072 x 1620 up to 320 fps 3072 x 1296 up to 400 fps 2048 x 1080 up to 480 fps 2048 x 864 up to 600 fps REDCODE HQ 8192 x 4320 up to 59.94 fps 7168 x 3780 6144 x 3240 up to 96 fps 4096 x 2160 up to 240 fps 2048 x 1080 up to 480 fps REDCODE LQ 8192 x 4320 up to 120 fps 7168 x 3780 6144 x 3240 up to 160 fps 4096 x 2160 up to 240 fps 2048 x 1080 up to 480 fps REDCODE MQ 8192 x 4320 up to 59.94 fps 7168 x 3780 6144 x 3240 up to 160 fps 4096 x 2160 up to 240 fps 2048 x 1080 up to 480 fps
Video Output	SDI/BNC 4096 x 2160 up to 60.00 fps 2048 x 1080p up to 60.00 fps
Recording Sensor Crop	Crops to Output Resolution in All Recording Modes
Fast-/Slow-Motion Support	Yes
Gamma Curve	RED IPP2
Built-In Microphone	Mono
Audio Recording	2-Channel 24-Bit 48 kHz
IP Streaming	Yes

Interface

Media/Memory Card Slot	Single Slot: CFexpress Type B (CFast 2.0)
Video I/O	3 x BNC (12G-SDI) Output 1 x BNC (3G-SDI) Output 1 x Proprietary (Unspecified Signal) Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Headphone Output 1x 5-Pin LEMO Mic/Line (+48 V Phantom Power) Input
Power I/O	1x LEMO 4-Pin (19.5 to 34VDC) Input 2x D-Tap (12VDC up to 3 A) Output 1x LEMO 2-Pin (12VDC at 3 A) Output 1x LEMO 2-Pin (12VDC at 1.5 A) Output 1x LEMO 2-Pin (12VDC at 1 A) Output 2x Fischer 3-Pin (12VDC up to 3 A) Output
Other I/O	1x BNC (Genlock) 1x LEMO 5-Pin (Timecode) 1x 9-Pin (Ethernet) Control/Data Input/Output 1x USB-C
Wireless	2.4 / 5 GHz Wi-Fi Video Output
Mobile App Compatible	Yes: Android & iOS App Name: RED Control, RED Control Pro
Global Positioning (GPS, GLONASS, etc.)	No

Monitor

Display Type

Primary Monitor: Fixed 2.4" Non-Touchscreen LCD

Viewfinder

Type	Support via Video Out Only

Focus

Focus Mode

Automatic, Continuous-Servo AF, Manual Focus, Single-Servo AF

Power

Battery Type

V-Mount

Environmental

Operating Conditions	32 to 104°F / 0 to 40°C
Storage Conditions	-4 to 122°F / -20 to 50°C up to 85% Humidity

General
