Hedén YMER 1-motor Kit with M26VE-LX

Hedén YMER 1-motor Kit with M26VE-LX
YMER-1 with LenSaver Calibration™
The Hedén YMER-1 with LenSaver Calibration™ is a wireless focus or iris control system with an optional wired zoom control through LANC.

LenSaver Calibration™ is a unique new way of calibrating a follow focus system, just press the calibration button and move the lens by hand from end-stop to end-stop then press the button again, that’s it. LenSaver Calibration™ is easy, safe and fast.

Manual Override™ makes it possible to take manual control of the lens without jeopardizing calibration.

Wireless transmission up to 500 meters (1640 feet) line of sight. Small with incredibly intuitive controls and unique features.

Smooth rotary movements of the control knob with adjustable resistance give you a haptic connection with total control of the lenses movements. Adjustable limit points for easy focus from A to B and precision mode for super fine control over an adjustable range.

One press on the camera run button starts and stops recording from a distance.

Mounting points on the transmitter makes it easy to attach other devices.

Unique features of YMER-1
·        LenSaver Calibration™, a new and unique way of calibrating a follow focus system – very quick and without risk of damaging delicate lenses or lenses without end-stops.

·        Extremely smooth knob movements with adjustable knob resistance.

·        Fast and accurate responsiveness and high motor speed.

·        Manual Override™ – the DP or Camera Operator can take manual control of the lens from the focus puller

·        Unique 1+1 receiver – one channel wireless and one channel wired through LANC to control zoom or iris with a wired control together with the wireless focus

·        Wired LANC control integrated with the Smartgrip™ on Sony™ FS5/FS7 or 3:rd party LANC controllers

·        Wireless transmission up to 500 meters (1640 feet) line of sight via industry-leading wireless control allowing for the fastest response of any long-range follow focus system on the market

·        Easy replaceable standard Sony battery with long operational life (not included)

Specifications (YMER-1 Transmitter):
·        Length (ex antenna): 152mm / 6”  (incl. antenna): 185mm / 7.3”

·        Height (ex control knob):  37mm / 1.45” (incl. control knob):  80mm / 3.15”

·        Width: 76mm / 3”

·        Wireless transmission up to 500 meters (1640 feet) line of sight via industry-leading wireless control allowing for the fastest response of any long-range follow focus system on the market.

·         Power source: Sony NP-FM500H compatible battery (not included)

Specifications (YMER 1+1 Reciever):
·        Drives up to two Hedén motors

·        One channel wireless and one channel wired through LANC

·        Length (ex antenna): 100mm / 4”

·        Height: 26mm / 1”

·        Width: 54mm / 2”

·        Weight: Approx. 180 gr / 6.4 oz

·        Works with Hedén motors M21VE-L, M26VE, VM35, LM30 and CM55

·        Range (Indoors): Approx. 15 – 100 meters (50-330 feet) depending on building materials, interference and other obstacles (Line of sight): 500 meters (1650 feet)

·        Power source: 14.4V PTAP

Specifications (Cables):
Motor cable:

·        7 pin Std. male Connectors at both sides

·        60 cm (23.6”) long.

 Power cable:

·        Std. 2 pin male connector to PTAP male at the other side

·        60 cm (23.6”) long.

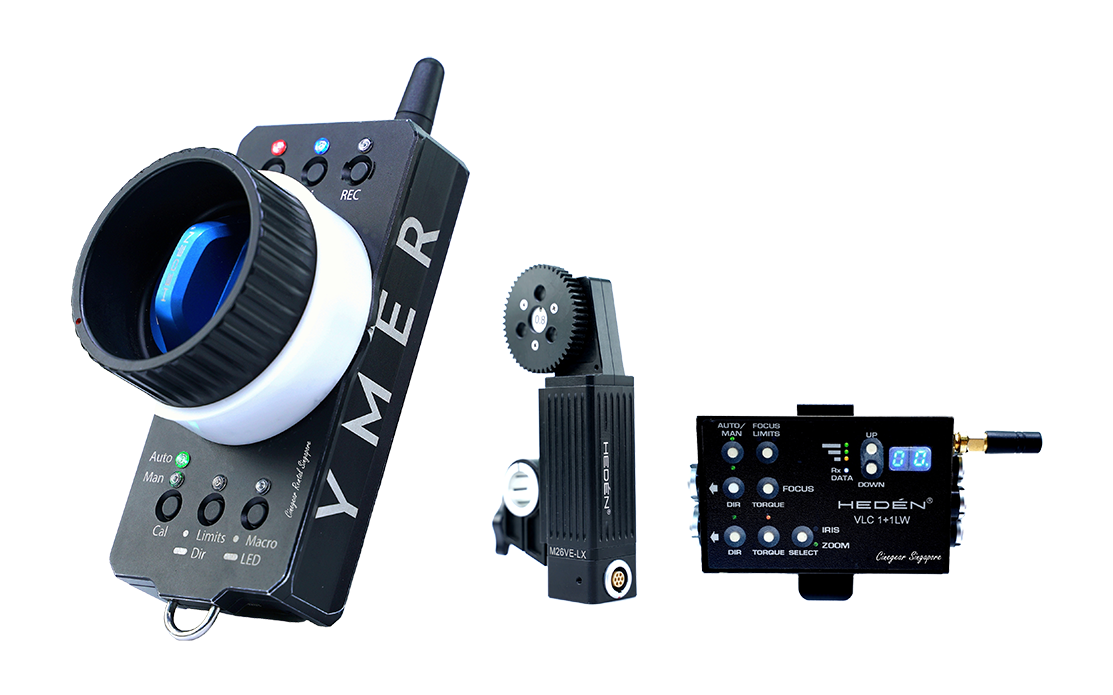

The system contains the following:
·        1 x YMER-1 transmitter

·        1 x YMER 1+1 receiver

·        1 x Hedén digital servo motor M26VE-LX

·        1 x Gear 0.8 module

·        1 x Bracket with 19mm to 15mm reduction insert

·        1 x White scale ring

·        1 x Power cable

·        1 x Motor cable

·        1 x Hedén neck strap

Sony NP-FM500H compatible battery and charger not included in package

Hedén M26VE-LX

The Hedén M26VE-LX motor is an updated version of our strong, reliable and silent lens control motor M26VE. The new upgarded motor offers higher top speed and same high torque as the M26VE, so it can still pull stiff lenses but now with higher speed. Small size and light weight make it ideal for cramped environments on a busy camera rig. Mounts vertically on a 19 mm (0.75”) rod without the need of tools. The accompanying bracket reduction insert will fit on a 15 mm (0.59”) rod and additional sizes are available in our accessories section. Interchangeable snap on gears that can be mounted on either side of the gear housing ads to the versatility of the Hedén motors. Supplied with a 0.8 gear module and with 0.4, 0.5, 0.6 modules available as extras.

Works with Heden Carat, Ymer and Preston

Specifications

• Height: (body): 33mm/1.3” (body with gear housing): 42mm/1.65”
• Width: 26mm/1.02”
• Length: 122mm/4.8”
• Weight: (without bracket and gears): 222gr/7.83 oz
• Connector: LEMO 7 pin connector

Includes:

Hedén M26VE-LX Motor
0.8 gear module
Bracket with 19mm to 15mm (0.75” to 0.59”) reduction insert
